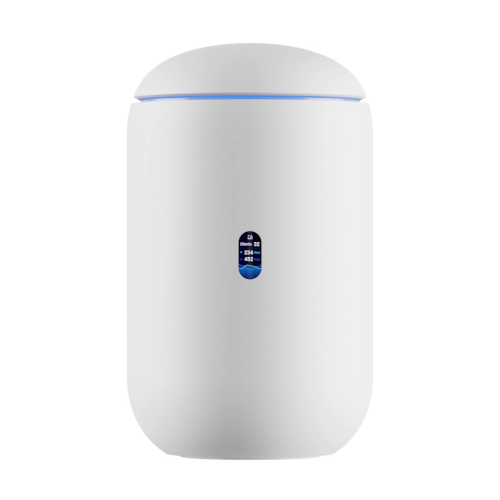

Ubiquiti UDR7 UniFi Dream Router 7

Ubiquiti UDR7 UniFi Dream Router 7

The Ubiquiti UDR7 UniFi Dream Router 7 is a next-generation UniFi cloud gateway designed for modern homes, offices, and business environments that demand high-speed connectivity, simplified control, and strong built-in security. Moreover, it combines a powerful router, integrated WiFi 7 access point, PoE switching, and UniFi application hosting in one compact desktop unit.

In addition, this advanced gateway supports the full UniFi application suite, including Network, Protect, Access, Talk, and Connect. Therefore, it gives users one centralized platform for managing devices, users, traffic, and connected services across a growing UniFi environment.

The router is designed for performance-focused deployments. It can manage 30+ UniFi devices and support 300+ simultaneous users, making it suitable for busy offices, retail spaces, smart workspaces, and high-demand home networks. As a result, it is a practical solution for users who want enterprise-grade features in a compact form factor.

Another major strength is connectivity. The Ubiquiti UDR 7 UniFi Dream Router 7 includes one 10G SFP+ port, one 2.5 GbE RJ45 WAN port, and four 2.5 GbE RJ45 LAN ports, including one PoE output port. Moreover, it delivers 2.3 Gbps IDS/IPS throughput, helping maintain strong network security without sacrificing speed.

Built-In WiFi 7 Performance

The integrated WiFi system supports 802.11a/b/g/n/ac/ax/be, including WiFi 7 and 6 GHz operation. This means users benefit from faster data rates, lower latency, and improved wireless efficiency. In addition, the router provides throughput of up to 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz.

Because of its 6-stream wireless design and 160 m² coverage area, the router is well suited for environments that require consistent wireless performance across multiple rooms or work areas. Therefore, it is a strong choice for users upgrading to a future-ready wireless network.

Security and Network Control

The Ubiquiti UDR 7 UniFi Dream Router 7 includes advanced security and traffic management tools that help protect and optimize your network. For example, it features a stateful firewall, Layer 7 firewall, DPI and traffic identification, content filtering, ad blocking, and intrusion prevention with 20,000+ signatures.

Moreover, it supports VLAN and subnet-based traffic segmentation, multi-WAN load balancing, OSPF dynamic routing, advanced QoS, RADIUS server, and policy-based WAN and VPN routing. As a result, businesses can build a more secure, organized, and manageable network with fewer extra devices.

VPN, Storage, and Practical Deployment

This UniFi gateway also includes strong VPN support, including Site Magic, IPsec, OpenVPN, WireGuard, L2TP, and Teleport zero-configuration VPN. Therefore, remote workers and branch offices can stay securely connected with minimal setup complexity.

For storage, the router comes with 64GB microSD storage pre-installed for NVR use, and it supports microSD expansion. In addition, the built-in 0.96-inch status display, Bluetooth setup, and compact desktop design make installation and ongoing management more convenient.

Overall, the Ubiquiti UDR 7 UniFi Dream Router 7 is an excellent solution for users who want a high-performance UniFi gateway with integrated WiFi 7, advanced security, and centralized application support in one elegant device.

Key Features

• Integrated 6-stream WiFi 7 access point with 6 GHz support

• Supports the full UniFi application suite

• Manages 30+ UniFi devices

• Supports 300+ simultaneous connected users

• Built-in 4-port 2.5GbE switch

• Includes 1 PoE LAN port

• Features 1 x 10G SFP+ WAN and 1 x 2.5 GbE RJ45 WAN

• Delivers 2.3 Gbps IDS/IPS throughput

• Includes 64GB microSD storage pre-installed

• Supports advanced firewall and threat protection

• Supports WireGuard, OpenVPN, IPsec, L2TP, and Teleport

• Compact desktop design with Bluetooth and status display

Technical Specifications

General

• Brand: Ubiquiti

• Model: UDR 7

• Product Name: Ubiquiti UDR 7 UniFi Dream Router 7

• Form Factor: Compact desktop

• Dimensions: Ø110 x 184.1 mm

UniFi Application Support

• UniFi Network: Yes

• UniFi Protect: Yes

• UniFi Access: Yes

• UniFi Talk: Yes

• UniFi Connect: Yes

Capacity

• Managed UniFi Devices: 30+

• Managed Cameras: 5 HD / 2 2K / 1 4K

• Simultaneous Users Connected: 300+

• Coverage Area: 160 m²

Ports and Connectivity

• Default WAN Ports: 1 x 10G SFP+, 1 x 2.5 GbE RJ45

• LAN Ports: 4 x 2.5 GbE RJ45

• PoE Ports: 1

• PoE Budget: 15.4W

• Max PoE per Port: 15.4W

• Networking Interface: 10G SFP+, 2.5 GbE RJ45

Security

• Stateful Firewall: Yes

• Layer 7 Firewall: Yes

• DPI and Traffic Identification: Yes

• Content Filtering: Yes

• Intrusion Prevention (IPS/IDS): Yes

• Ad Blocking: Yes

• IDS/IPS Signatures: 20,000+

VPN and SD-WAN

• License-Free SD-WAN: Yes

• Site Magic: Yes

• IPsec: Yes

• OpenVPN: Yes

• WireGuard: Yes

• L2TP: Yes

• Teleport VPN: Yes

WiFi

• WiFi Standard: 802.11a/b/g/n/ac/ax/be

• 6 GHz Throughput: 5.7 Gbps

• 5 GHz Throughput: 4.3 Gbps

• 2.4 GHz Throughput: 688 Mbps

• Wireless Security: WPA, WPA2, WPA3, WPA-Enterprise, PPSK

• Max BSSIDs: 4 per radio

Hardware

• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz

• System Memory: 3 GB

• NVR Storage: Pre-installed 64GB microSD

• Expansion Slot: MicroSD card

• Display: 0.96-inch status display

• Management: Ethernet, Bluetooth

• Power Method: 100–240V AC, 1.5A max, 50/60 Hz

• Power Supply: Internal AC/DC, 50W

• Max Power Consumption: 26W

• Weight: 1.1 kg

• Enclosure Material: Polycarbonate

Environmental

• Operating Temperature: -10 to 40°C

• Operating Humidity: 5 to 95% noncondensing

• ESD/EMP Protection: Air ±8kV, contact ±4kV

Compliance

• NDAA Compliant: Yes

• Certifications: CE, FCC, IC, Anatel

Why Buy the Ubiquiti UDR 7 UniFi Dream Router 7?

The Ubiquiti UDR 7 UniFi Dream Router 7 is ideal for users who want one device that combines high-speed WiFi, routing, switching, security, and UniFi application management. Moreover, it reduces the need for multiple devices, which helps simplify deployment and maintenance.

In addition, the combination of WiFi 7, 10G SFP+, 2.5GbE, PoE, and advanced security features makes it suitable for demanding modern networks. Therefore, it is a smart choice for businesses, installers, and advanced users looking for a future-ready UniFi solution.

Box Contents

• 1 x Ubiquiti UDR 7 UniFi Dream Router 7

• Power cable / built-in power system

• Manufacturer documentation

Ideal For

• Offices

• Small businesses

• Smart homes

• Retail stores

• Professional installers

• UniFi network upgrades

• Multi-device wireless environments
