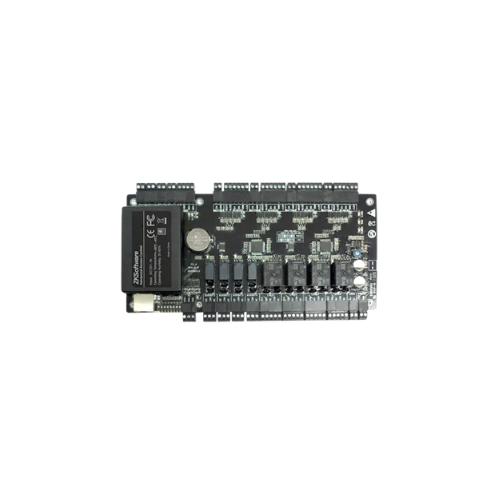

Zkteco C3-400 – RFID Access Controller, Access with EM/Mifare card
-
Pick up from the Woodmart Store
To pick up today
Free store pickup
-
Courier delivery
Our courier will deliver to the specified address
1-3 Days
From KES 300
RFID Access Controller – Access with EM/Mifare card or password – TCP/IP communication | RS485 – 4 Wiegand inputs 26 – Relay output for four doors
KSh 30,000.00
Don't Miss Top Accessories
Description
Zkteco C3-400 – RFID Access Controller, Access with EM/Mifare card
RFID Access Controller – Zkteco Access with EM/Mifare card or password – TCP/IP communication | RS485 – 4 Wiegand inputs 26 – Relay output for four doors
| Description |
C3-100
|
C3-200
|
C3-400 |
| Number of Doors Controlled | 1 Door | 2 Door | 4 Door |
| Number of Readers Supported | 2 | 4 | 4 |
| Types of Readers Supported | 26-bit Wiegand, others upon request | 26-bit Wiegand, others upon request | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status) | 6 (2 Exit Device, 2 Door Status, 2 AUX) | 12 (4 Exit Device, 4 Door Status, 4 AUX) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) | 4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) | 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) |
| Card Holders Capacity | 30,000 | 30,000 | 30,000 |
| Log Events Capacity | 100,000 | 100,000 | 100,000 |
| Weight | 7.4lbs (3.35kg) | 7.5lbs (3.4kg) | 7.8lbs (3.55kg) |
| Communication | TCP/IP, RS-485 and WiFi optional | TCP/IP, RS-485 and WiFi optional | TCP/IP, RS-485 and WiFi optional |
| Enclosure | Powder Coated Aluminium | Powder Coated Aluminium | Powder Coated Aluminium |
| Mounting | Wall Mount | Wall Mount | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A | 12V DC, 1.5A | 12V DC, 1.5A |
| Dimensions (Bundle Only) | 15in.×3.15in.×11in. | 15in.×3.15in.×11in. | 15in.×3.15in.×11in. |
| 380mm(L) X 80mm(W) X 280mm(H) | 380mm(L)×80mm(W)×280mm(H) | 380mm(L)×80mm(W)×280mm(H) | |
| Dimensions ( Board Only) | 6.3in.×4.17in. (160mm×106mm) | 6.3in.×4.17in. (160mm×106mm) | 8.58in.×4.17in. (218mm×106mm) |
