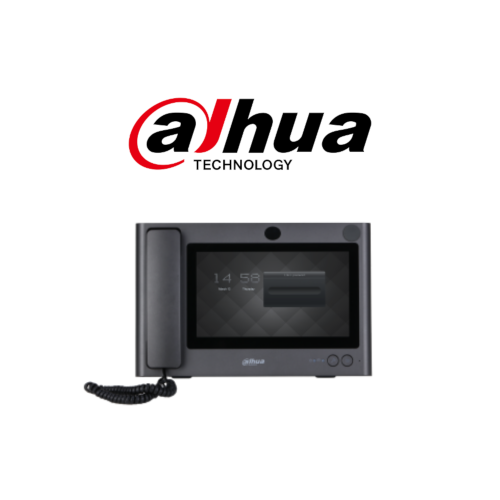

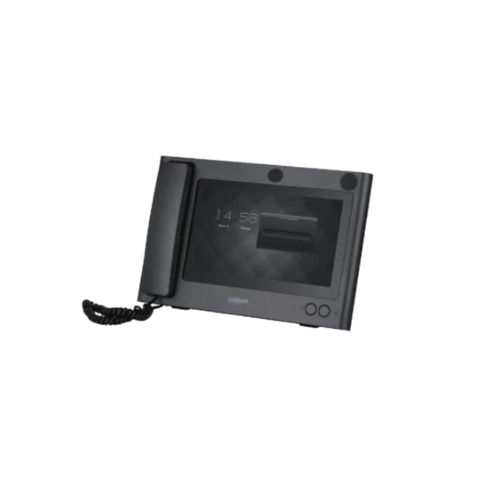

Dahua Master Station (DHI-VTS5340B) CCTV Black

Dahua Master Station (DHI-VTS5340B) CCTV Black

Dahua VTS5340B. Dahua master station. SIP protocol. Easy to use, without the need for installations. Bracket with angle range of 0 ° ~ 45 °. Supports 4 channel 720P. 10 “capacitive LCD screen with 1024×600 resolution. Supports two audio output modes: hands-free and headset. SD card expansion makes videos and snapshots restorable locally. MicroSD slot (card not included) . 1 HDMI port. 2 audio inputs. 12V DC (includes power adapter)

specs

Embedded processor

Embedded Linux operating system

10 ”color LCD screen (1024×600)

Capacitive touch screen

2 mechanical buttons

Audio compression G.711a, G.711u, PCM

2 audio inputs

Incorporates microphone and hands-free speaker

Full Duplex audio communication

Echo suppression and cancellation and digital noise reduction

Fully digital communication

Screen division: all 4 channels 720P can be displayed on the screen in 4 sections

MicroSD card slot up to 64GB (card not included)

RJ45 100 / 1000Mbps network interface, self-adaptive

Network protocols: IPv4, SIP, RTSP, RTP, TCP, UDP

1 HDMI port

Power supply: 12V DC, 2A (adapter included)

Maximum consumption: ≤24W

Operating altitude: 0 ~ 1300 meters

Operating temperature: -10 ° C ~ + 55 ° C

Relative humidity: 5% ~ 90% (non-condensing)

Not suitable for outdoors

Polycarbonate and ABS plastic shell

Dimensions: 345 x 224.6 x 28 mm
