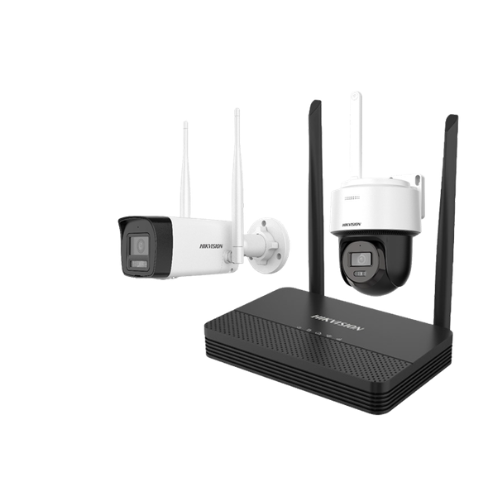

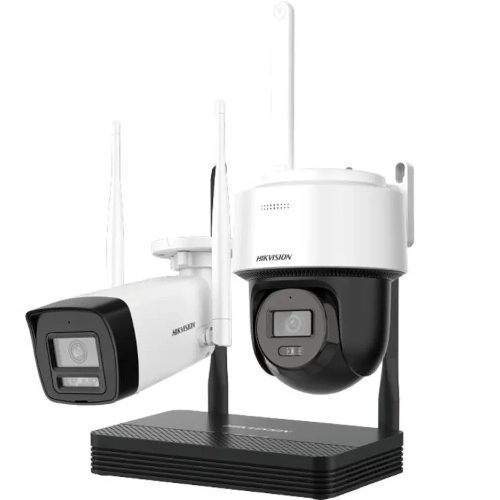

Hikvision 2MP H.265 One bullet + One PTDome WiFi NVS Kit – NKS422W03H

Hikvision 2MP H.265 One Bullet + One PT Dome WiFi NVS Kit – NKS422W03H

Enhance your surveillance capabilities with the Hikvision 2MP H.265 One Bullet + One PT Dome WiFi NVS Kit – NKS422W03H. Designed for both residential and commercial applications, this kit offers high-resolution imaging, advanced features, and robust performance. It’s perfect for installations in Nairobi and throughout Kenya, ensuring clear visibility day and night.

 Key Features

• High-Resolution Imaging: Captures 2 MP (1920 × 1080) video for detailed and clear footage, ideal for monitoring large areas.

• Dual Camera Setup: Includes one fixed bullet camera and one fixed PT dome camera, both with 2.8 mm focal length, providing versatile coverage.

• H.265 Video Compression: Efficient compression reduces bandwidth and storage requirements while maintaining high-quality video.

• Wireless Connectivity: Supports Wi-Fi 6 (IEEE 802.11b/g/n/ax) for faster and more stable connections.

• Smart Hybrid Light: Three lighting modes—color, black & white, or motion-triggered color imaging—suit various lighting conditions.

• Two-Way Audio: Built-in microphone and speaker allow for real-time communication and audio alarms.

• Accurate Motion Detection: Advanced motion detection function enhances security by triggering alerts for suspicious activities.

• Secure Video Storage: All videos are stored in the Network Video Storage (NVS), supporting up to a 512 GB microSD card.

• Remote Management: Manage all functions through the Hik-Connect app, including camera addition, live view, playback, and two-way audio.

 Specifications

• Camera Case Type: Bullet; Dome

• Image Sensor: 1/3″ Progressive Scan CMOS

• Minimum Illumination:

  • Bullet: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

  • Dome: Color: 0.04 Lux @ (F2.0, AGC ON), B/W: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

• Day & Night: IR cut filter

• Wide Dynamic Range: DWDR

• Angle Adjustment:

  • Bullet: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

  • Dome: Pan: 0° to 345°, Tilt: 0° to 80°

• Protection Level: IP66

• Wi-Fi Support: Yes

• Focal Length: 2.8 mm

• Aperture: F2.0

• Focus: Fixed

• Field of View:

  • Horizontal: 101°

  • Vertical: 56°

  • Diagonal: 118°

• IR Range:

  • Bullet: Up to 30 m

  • Dome: White light distance: up to 25 m, IR distance: up to 25 m

• Video Compression: H.265; H.264; MJPEG

• Audio Compression: G.711; AAC-LC

• Power Supply:

  • Bullet: 12 VDC ± 25%, 0.5 A, max. 6 W

  • Dome: 12 VDC ± 25%, 0.75 A, max. 9 W

• Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

• Operating Temperature:

  • Bullet: -30°C to 60°C

  • Dome: -10°C to 40°C

• Operating Humidity: 95% or less (non-condensing)

• Dimensions:

  • Bullet: 260.9 mm × 113.9 mm × 67.4 mm

  • Dome: Ø124 mm × 119 mm

• Weight:

  • Bullet: 305 g

  • Dome: 600 g

• NVR:

  • IP Video Input: 4-ch

  • Incoming/Outgoing Bandwidth: 20 Mbps/20 Mbps

  • Video Resolution: 6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Synchronous Playback: 1-ch

  • Network Interface: 1, RJ45 10/100M Ethernet interface

  • Wi-Fi Frequency Band: 2.4 GHz

  • Antenna Structure: High gain antenna

  • Transmission Speed: 150 Mbps

  • Transmission Standard: IEEE 802.11b/g/n/ax

  • SD Card: 32G/64G/128G/256G/512G

  • Power Supply: 12 VDC

  • Consumption (without HDD and PoE off): ≤ 6 W

  • Working Temperature: -10°C to 55°C

  • Working Humidity: 10% to 90%

  • Dimensions: 163 mm × 125 mm × 26 mm

  • Weight (without hard disk): ≤ 500 g

• Kit Accessories:

  • Power Adaptor: 2 × IPC power adaptor, 1 × NVS power adaptor

  • Ethernet Cable: RJ45, Cat5e UTP, 1 m

• Certification: CB, CE

• Weight (with package): ≤ 2.5 kg
