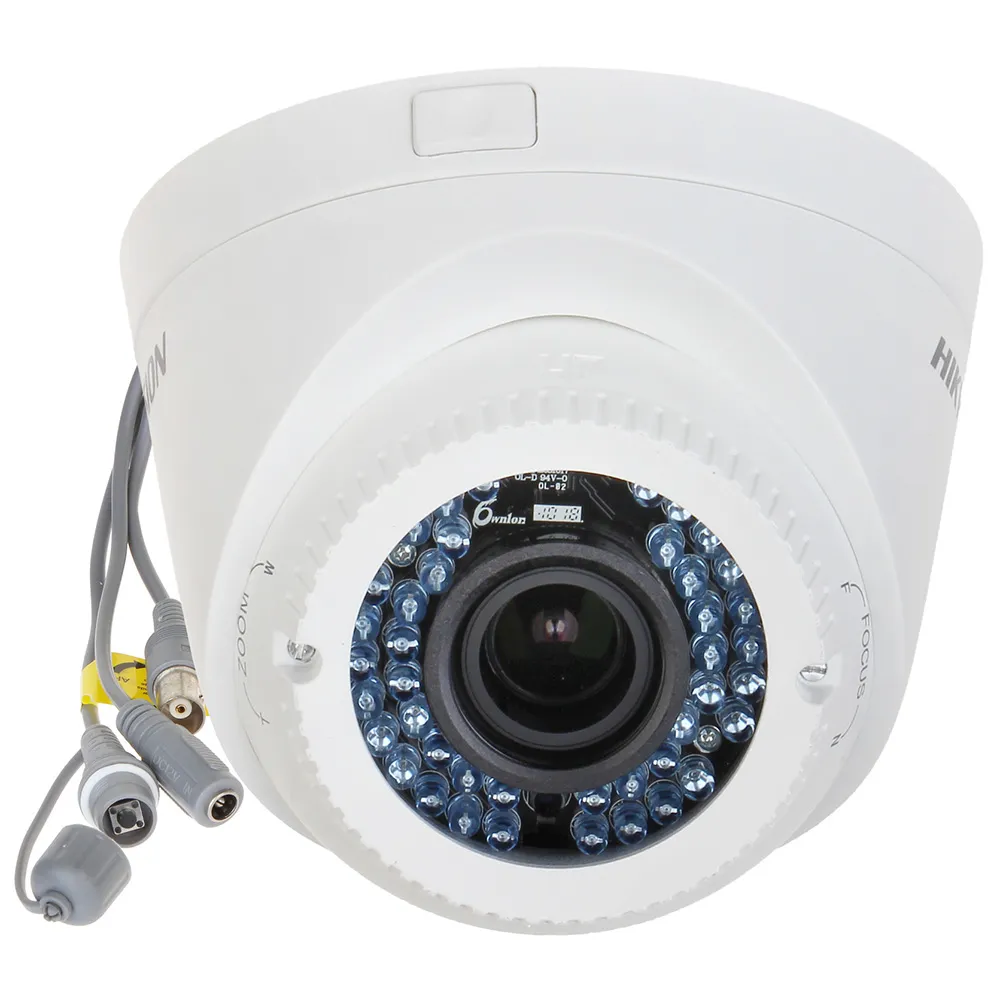

Hikvision Turbo HD Camera DS-2CE56D0T-VFIR3F (2.8-12mm) (O-STD)
 Features:
- Image resolution: 2 MP (1080p),
- Selectable video standard: HD-TVI, AHD, HD-CVI, CVBS,
- Sensitivity: 0.01 lx,
- 2.8-12 mm varifocal lens,
- Mechanically switching IR filter (ICR),
- Weather-proof housing (IP66),
- Smart IR illuminator with range up to 40 m.
KSh 8,125.00
Don't Miss Top Accessories
Description
z`
Hikvision Turbo HD Camera DS-2CE56D0T-VFIR3F (2.8-12mm) (O-STD)
The Hikvision DS-2CE56D0T-VFIR3F M75362 camera can be used in video surveillance systems based on various types of DVRs. The user can select the required video standard from among HD-TVI, HD-CVI, AHD, or the legacy CVBS (ANALOG). The choice of the standard is made by an appropriate setting of the switches located on the additional cable. The enhanced video systems allow for using the 1080p option that utilizes the 2 MP image resolution of the camera. Thanks to high sensitivity of the image sensor (0.01 lx) and built-in IR illuminator with range up to 40 m, the camera provides high quality video coverage even in difficult lighting conditions.
High-quality video encoding
High Definition Transport Video Interface (HD-TVI) is a new technology that allows users to send uncompressed, high-resolution video over coaxial or twisted-pair cables (using dedicated baluns). The transmitted video signal is in analog form, with bandwidth much greater than in the case of CVBS (SD). As the signal is not compressed, the picture is more natural during live viewing. There is no delay and the configuration of such a system is easier compared to IP CCTV solutions.
Setup via DVR
The camera provides the ability to control its OSD menu using the video signal cable. The control is possible via a compatible DVR, after selecting PTZ control in its menu and switching on the menu of the camera, with access to all configuration options.
D0T series
D0TÂ is the most economical series of HD-TVI cameras. At low cost, the cameras ensure high quality, 1080p video in daylight and low-light environments (sensitivity of 0.01 lx). Some models of the series are equipped a new type of IR illuminator called Exir.
Specifications:
| Name | DS-2CE56D0T-VFIR3F |
| Code | M75362 |
| Video standard (selectable) | HD-TVI, AHD, HD-CVI, CVBS |
| Effective pixels | 1920×1080 |
| Sensitivity [lx] | 0.01 |
| Electronic shutter | Yes |
| AGC | Yes |
| OSD menu | No |
| BLC | – |
| Day/ night | Yes, ICR |
| DNR | Yes, 2D |
| Privacy masks | – |
| Mirror image | – |
| Motion detection | – |
| IR illuminator | range up to 40 m |
| Lens | 2.8-12 mm |
| Viewing angle | 102° – 32° |
| Housing | dome |
| Dimensions | ø130 x 102 mm |
| Material | plastics |
| Oper. temperature range | -40°C…60°C |
| IP rating | IP66 |
| Connectors | video (BNC) power (2.1/5.5) |
| Power | 12 VDC ; 0.3 A |
| Power consumption | 4 W |
| Weight | 0.71 kg |
